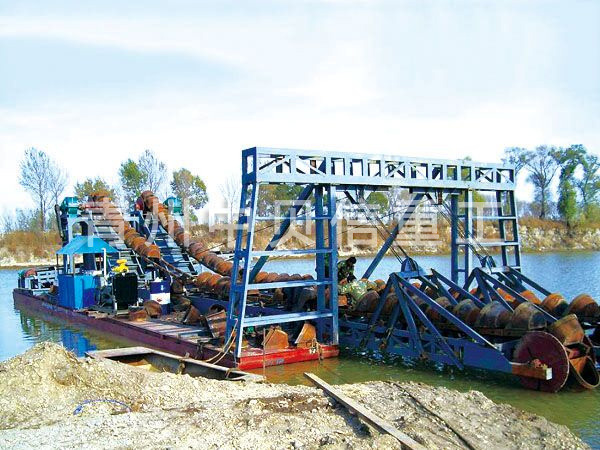

Technical parameters of chain bucket type gold panning ship

2021-7-16

一键分享：

Unit Introduction:

1, the gold ship set mining, screening, beneficiation as one, can extract gold, tungsten, tin ore and other heavy metal minerals.

2. Strong adaptability, it is very practical for the river where the content of clay ore, gravel and limestone is not more than 30% and the volume of large stones is not more than 100mm.

3, according to customer requirements can be used ordinary chute, agitating chute, water jacket centrifuge and other different beneficiation process, for the ore with a high content of iron sand can be installed magnetic separator.

4, mining depth and output can be customized according to customer requirements, recovery rate is more than 90%.

Technical parameters:

Model	Bucket Amount	Dredging Depth（m）	Capicity （m3/h）	Ore size（mm）	Recovery（%）
HCWD-40	40-60	1-5	50-100	≤300	≥90
HCWD-60	60-80	1-8	50-150	≤300	≥90
HCWD-80	80-95	1-10	50-150	≤300	≥90
HCWD-100	100-110	1-15	50-150	≤300	≥90
