Technical parameters of cutter suction dredger
2021-7-16

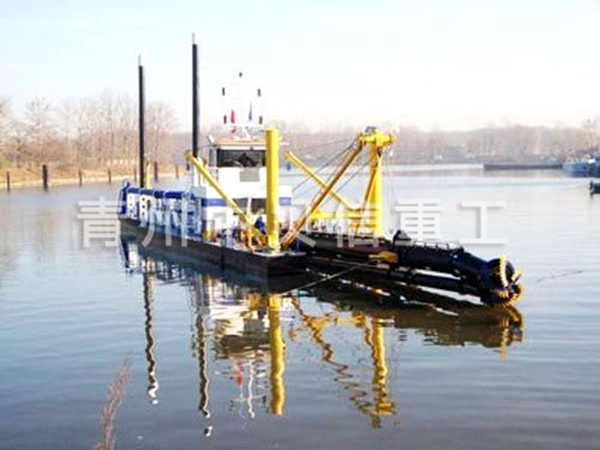

Technical parameters of cutter suction dredger
This machine is suitable for river dredging (weed area, stone less than 25%), hydraulic operation, easy to use, digging depth of 4-10 meters, row distance ≤1000 meters, water flow per hour 800-1600 cubic meters.
| model | specifications | Production capacity | With the power | Row spacing |
| YLJ-80 | 14×5.4 | 80 | 360 | 500 |
| YLJ-3000 | 18×6.4 | 3000 | 4600 | 3000 |
Riverside work, direct transport, production 40-150 cubic meters, the requirements of high quality sand.
Self-loading self-unloading type, volume 10-50 cubic meters, sand per hour 20-90 cubic meters, 1110×3 power, the requirements of excellent sand, flow particles less than 10cm. Drilling type pumping sand, production of 60-120 cubic meters, pumping sand depth of 4-16m, suitable for reservoirs, sugar and other surface areas with silt.
| project | Assemble bucket parameters | Floating body (LENGTH x width)m | Depth sand-excavating | Magnetic separator type (diameter × length)mm | Production of wool（m3/h） | The motor is equipped with power（kw） | reducer | Discharge system |
| YLWT-40 | 40-60 | 15×1.89 | 4m-6m | 600×1800 | 60-80 | 18 | gravity | |
| YLWT-60 | 60-80 | 18×2.0 | 6m-8m | 150×2200 | 60-80 | 22 | 500 | Artesian/belt |
| YLWT-80 | 80-95 | 20×2.0 | 8m-10m | 250×2200 | 60-100 | 22 | 650 | Artesian/belt |
| YLWT-100 | 95-110 | 24×2.0 | 12m-15m | 750×2600 | 60-100 | 22-30 | 750 | Artesian/belt |
| YLWT-110 | 110-115 | 28×2.0 | 15m-20m | 750-2600 | 60-100 | 30 | 750 | Artesian/belt |
| YLTC-10 | A sand pump | 18×2.0 | 6m-10m | 750×2200×2 | 30-50 | 22-30×2 | 750 | gravity |
| YLTC-20 | A sand pump | 18×2.0 | 6m-10m | 750×2600×2 | 250-300 | 75-90 | gravity | |
| Note: This machine can also be customized according to user needs and geographical environment, WC-20 is a new development of machinery. | ||||||||
